DuraShield

TRANSPORT BODY SOLUTION


DuraShield is a high-performance composite laminate solution for manufacturers of dry freight

transport trailer vans and storage containers familiar with the performance benefits of steel

composite material in sidewall and door panel applications.

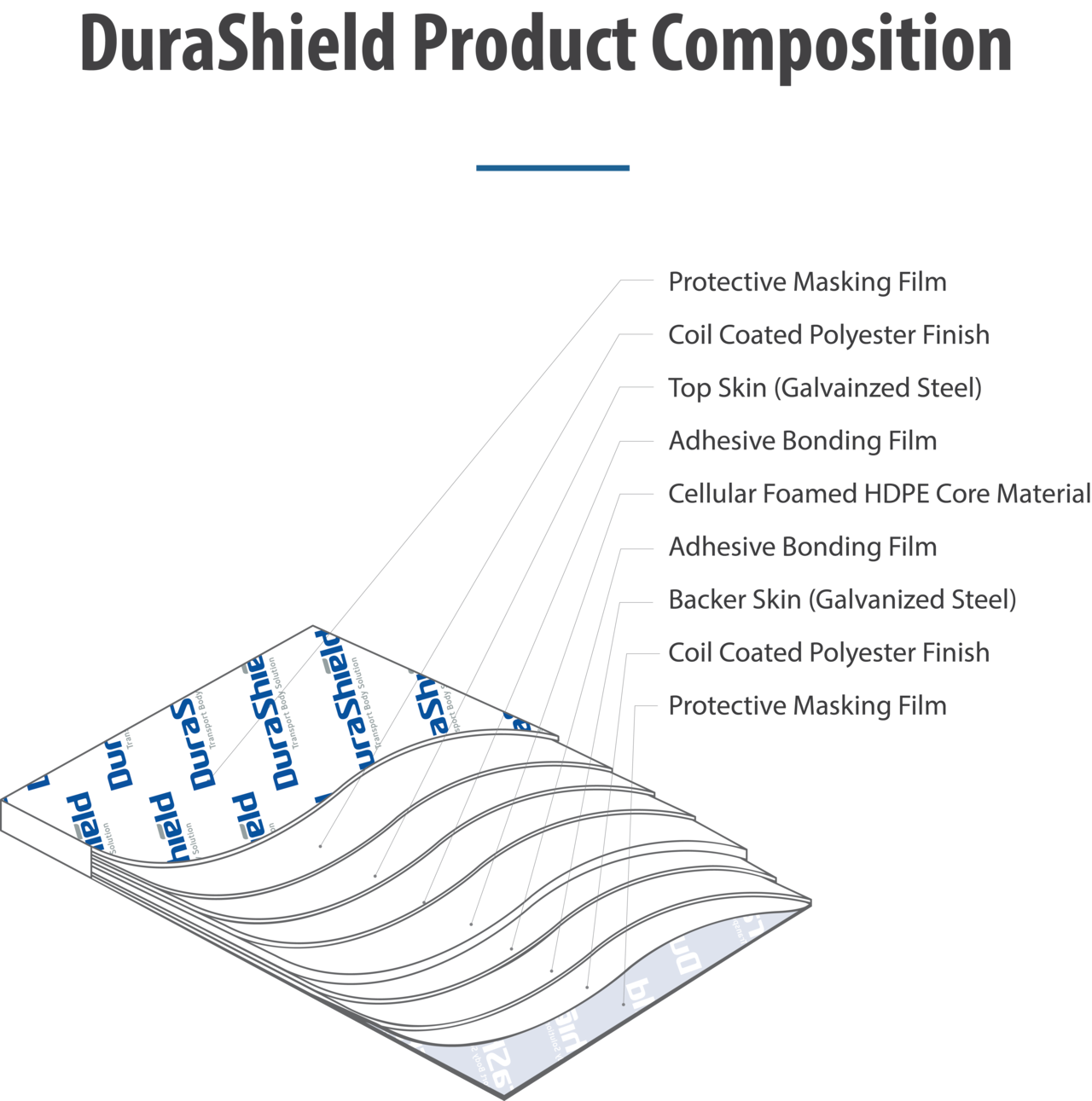

Backed by 25 years of expertise, the foundation of DuraShield is its extruded thermoplastic

cellular foam core – a proprietary formulation compounded in-house and engineered to maximize

strength, weight efficiency, and sustainability. Core material is permanently bonded with

high-strength galvanized steel skins and cut-to-length into panels per your requirements.


More than just a product, DuraShield is a product capability and service culture focused on

delivering tailored solutions that meet your design, performance, and operational objectives.

Customization is not just a possibility; it is our intent – making it the smarter choice for modern

trailer body manufacturers.

DuraShield Benefits

Product Specification Range

Steel
Galvanized Steel
Core
Proprietary Foamed HDPE
Skin Thickness0.3 mm (.012 in) - 0.5mm (.019in)
Panel Thickness
3 mm (.118in) - 13mm (.511in)
Max. Widths
≤ 1,250mm (49.2in)
Max. Lengths
≤ 6,000mm (20ft)
Standard Finish
Pure White Polyester Coating
